More than just accuracy
for your application

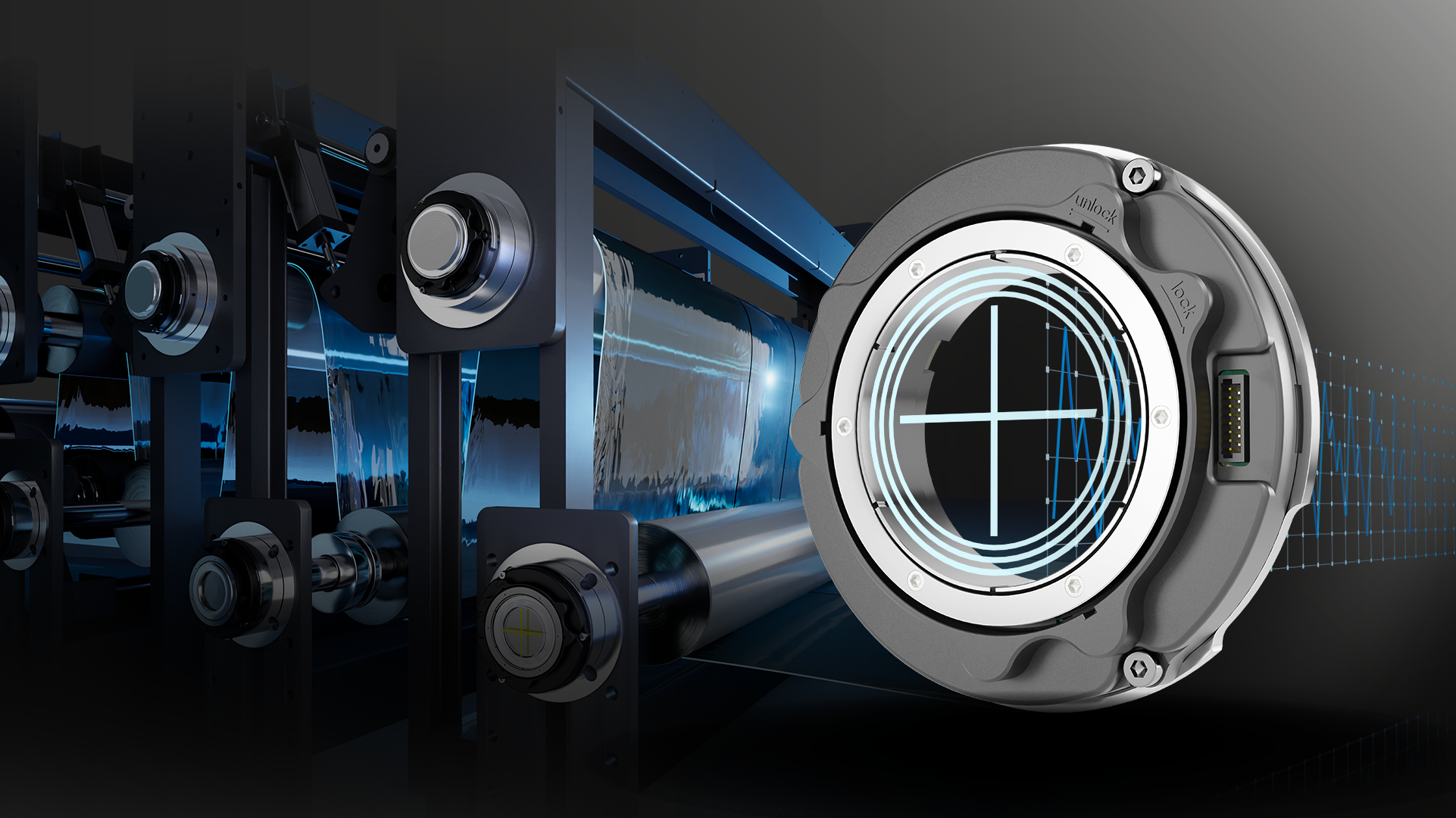

Smart solutions that go beyond motor feedback,
from the HEIDENHAIN CORPORATE GROUP

The TNC7 HMI portfolio:
More sizes, more flexibility

Harness TNC7 productivity on smaller machines
with the streamlined TNC7 Basic

Reliable positioning without
purge air: save 99% CO2

TRUE IMAGE TECHNOLOGY: Accurate
encoder scanning despite condensation

Protect machines: encoders
with vibration feedback

Integrated additional sensors increase process reliability
and supply data for intelligent maintenance planning

More accuracy and throughput

New solutions with MULIT-DOF TECHNOLOGY and TRANSFERABLE ACCURACY for electronics and semiconductor manufacturing

Highlights for your machine tool

TNC7: New functions and a larger HMI portfolio, including the TNC7 basic

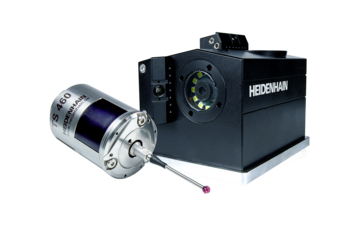

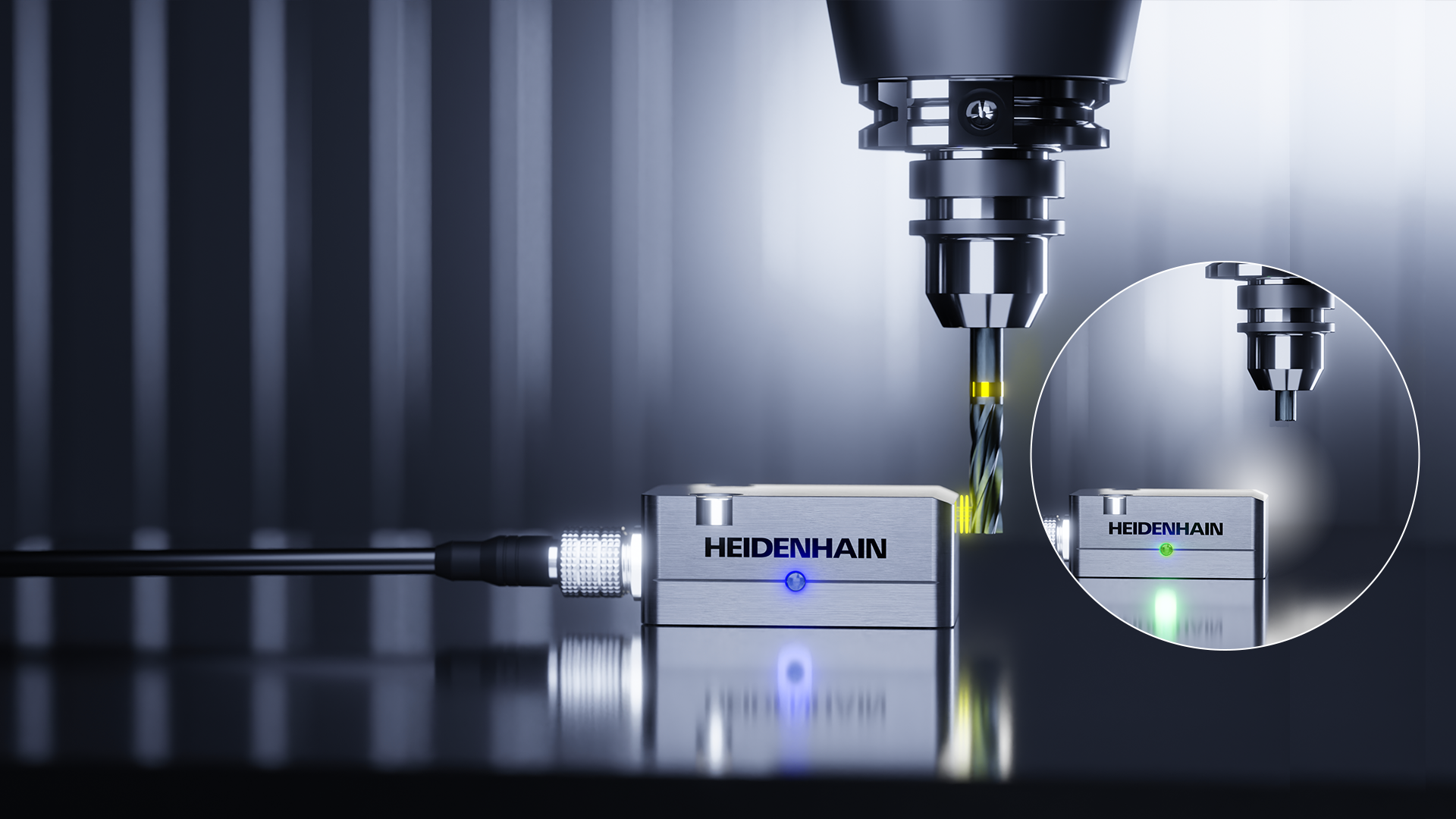

TS 460 and TD 110: Save time and energy while raising process reliability

LC, LB and RCN: Choose encoders with a 99% smaller carbon footprint

Learn more

What's new at HEIDENHAIN

Solutions for chiplet manufacturing

HEIDENHAIN encoders and ETEL motion systems ensure higher accuracy in frontend and backend processes, especially hybrid bonding.
Visit press release

Our innovations for machine tools

Relive the EMO innovations, including the TNC7, Digital Shop Floor software and encoders for greater process reliability, productivity and resource efficiency.
Visit the virtual event

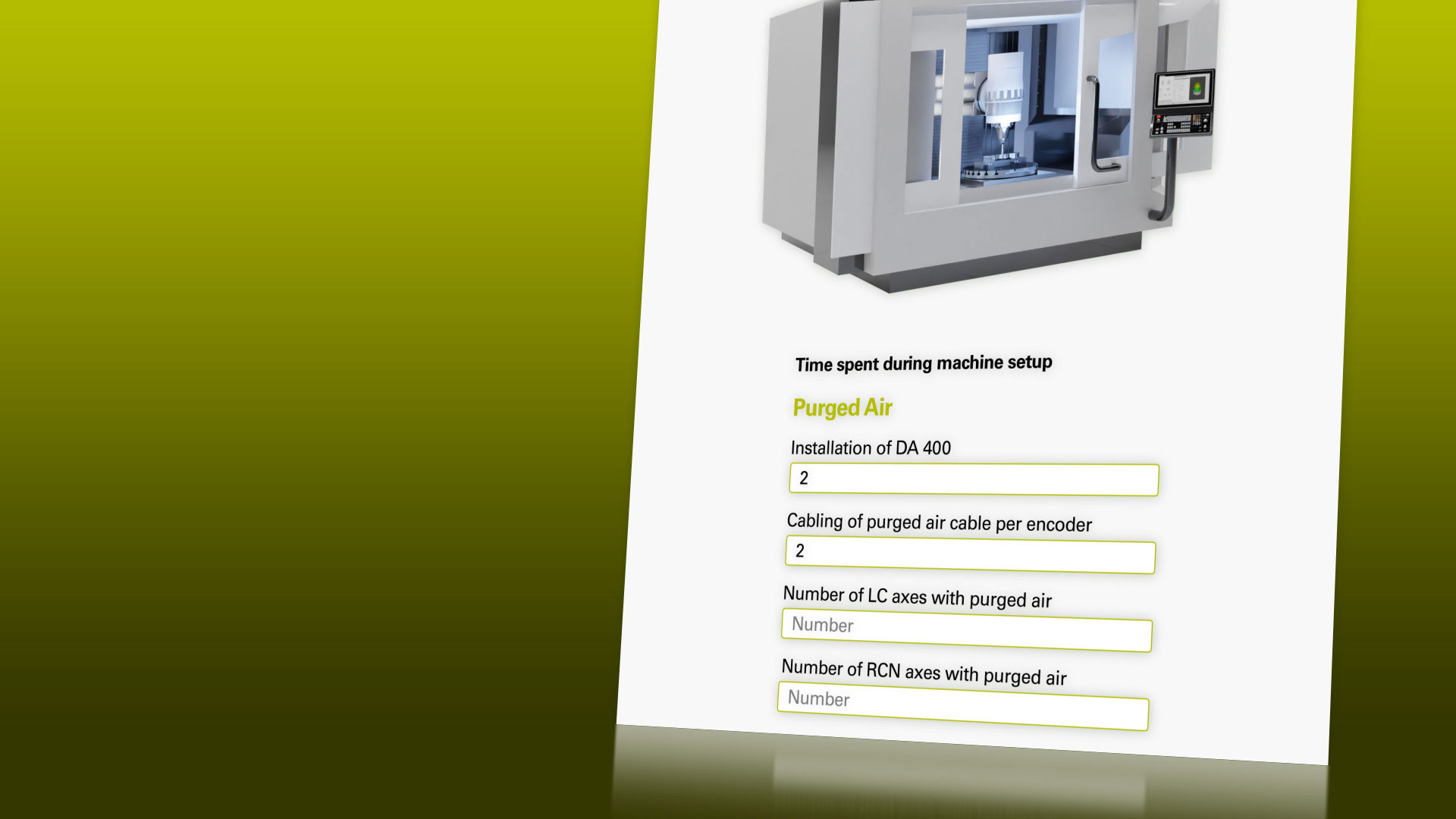

TRUE IMAGE for 99% less CO2

Encoders with TRUE IMAGE TECHNOLOGY deliver accurate scale readings without purge air despite  exposure to liquid contamination.
Find out more

Documentation, software, and more

Find specific product information at our Filebase and Infobase.
Visit the download center

HEIDENHAIN develops and produces linear encoders, angle encoders, rotary encoders, length gauges, touch probes, sensors, vision systems, CNC controls and digital readouts for the world’s most innovative industries, including robotics, automation, machine tools, semiconductors and electronics manufacturing.

Find out more

Find solutions for your industry

HEIDENHAIN is at home in numerous industries. Discover solutions from the HEIDENHAIN Corporate Group for your application. Discuss your requirements with our sales engineers, and let our brands support your market success with their extensive product portfolios and strong industry expertise.

Machine tool Automation Electronics Robotics Medical Drive systems Elevators Structural Health Monitoring Wind energy Printing

Your applications are demanding. Our products have the answers.

Linear encoders

Linear encoders from HEIDENHAIN measure the position of linear axes without added mechanical intervention, allowing your machines to attain exceptional positioning accuracy and machining speed.

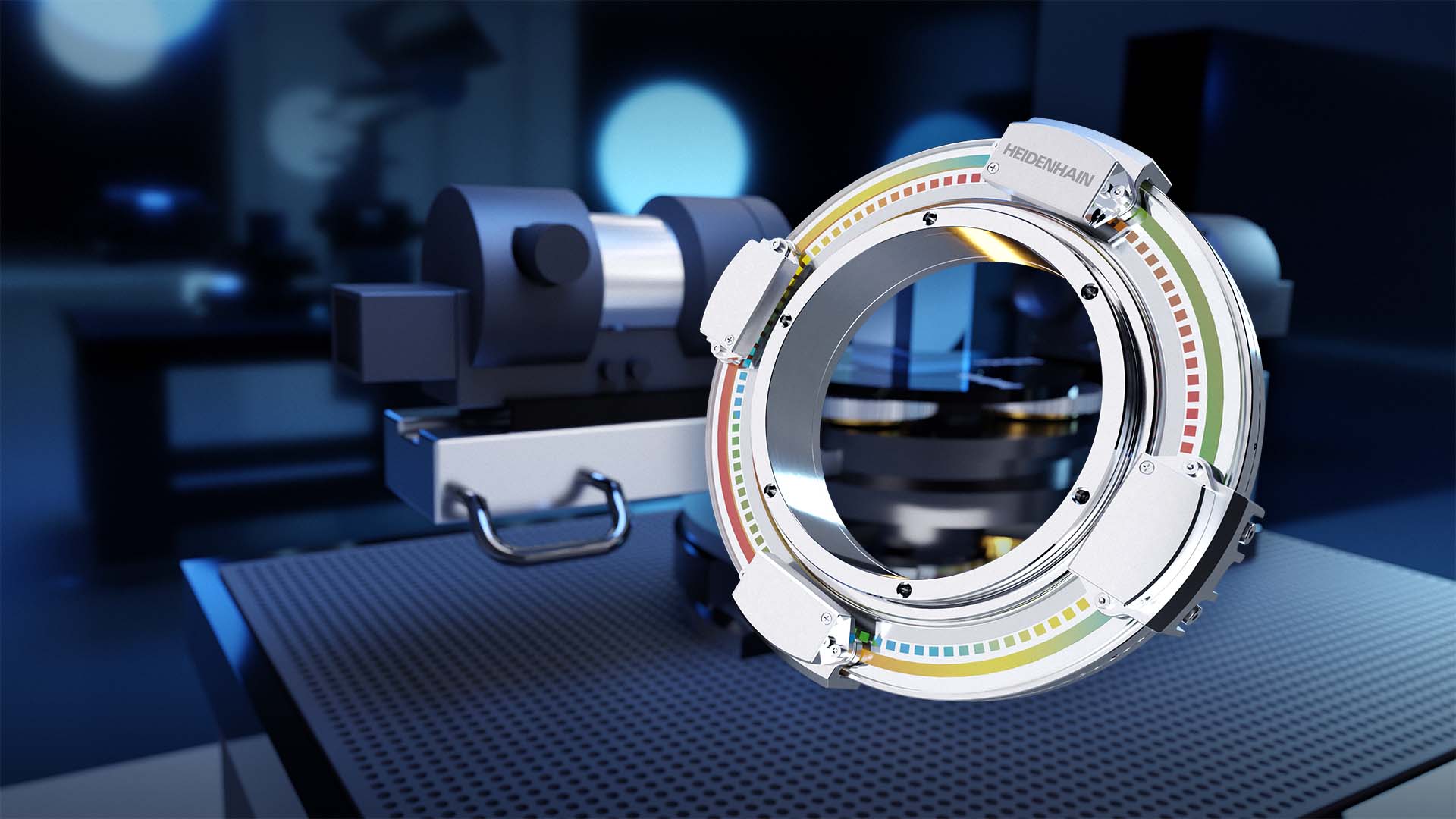

Angle encoders

Enjoy high-accuracy rotary axis positioning down to a few arc seconds. HEIDENHAIN has the optimal angle encoder for your application, with sealed, modular, and highly integrated, built-in bearing options.

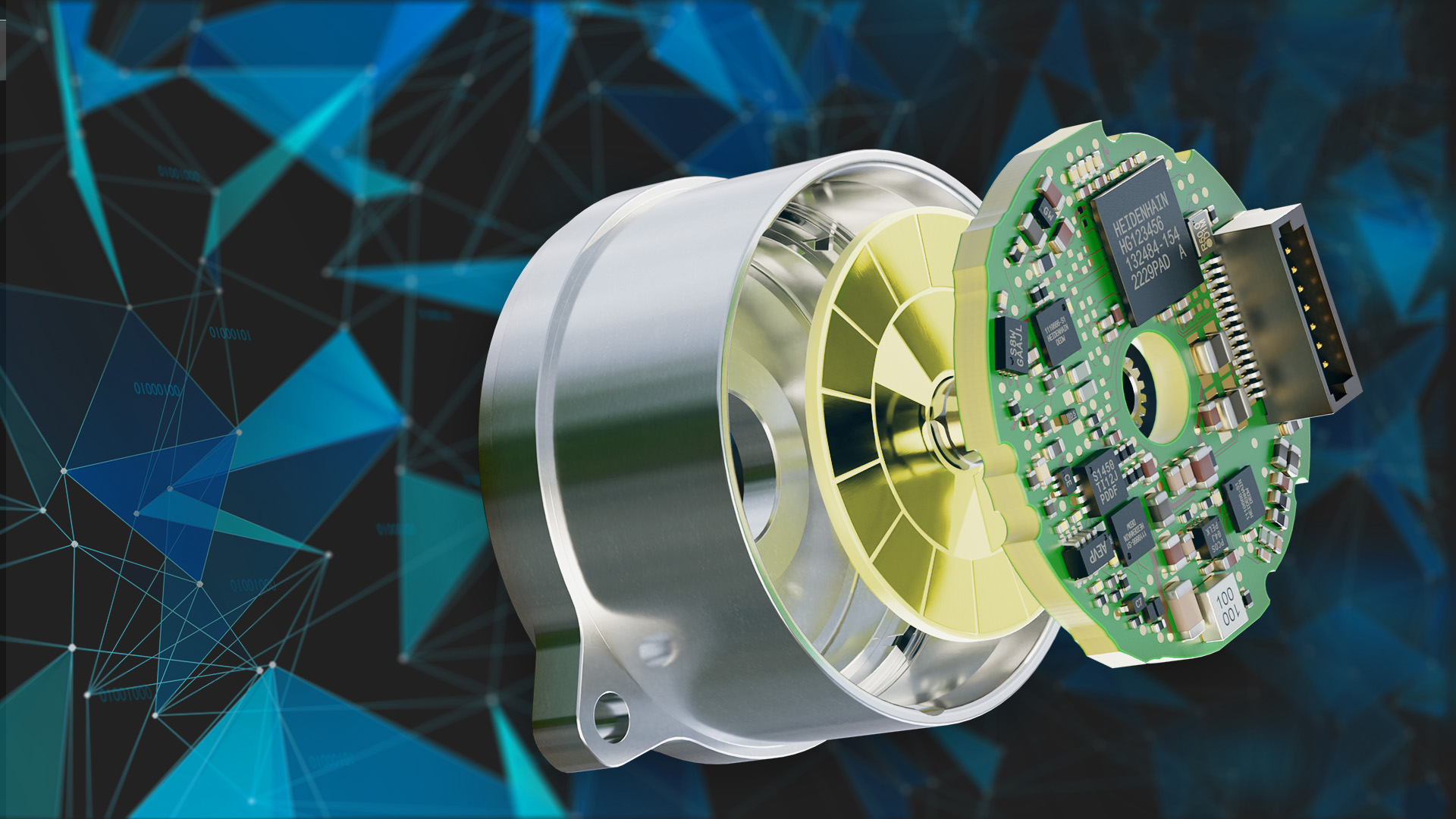

Rotary encoders

Entrust your application to premium quality, durability, and precision. The robust and easy-to-install rotary encoders from HEIDENHAIN measure speed and position with accuracy and dependability.

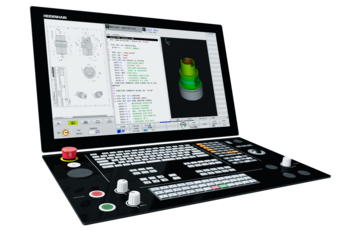

CNC controls

CNC controls from HEIDENHAIN are shop-friendly, versatile, and high-performance. These milling and turning controls optimize motion control on your machine tools, turning them into user-friendly workstations on the shop floor.

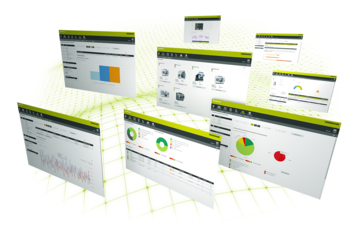

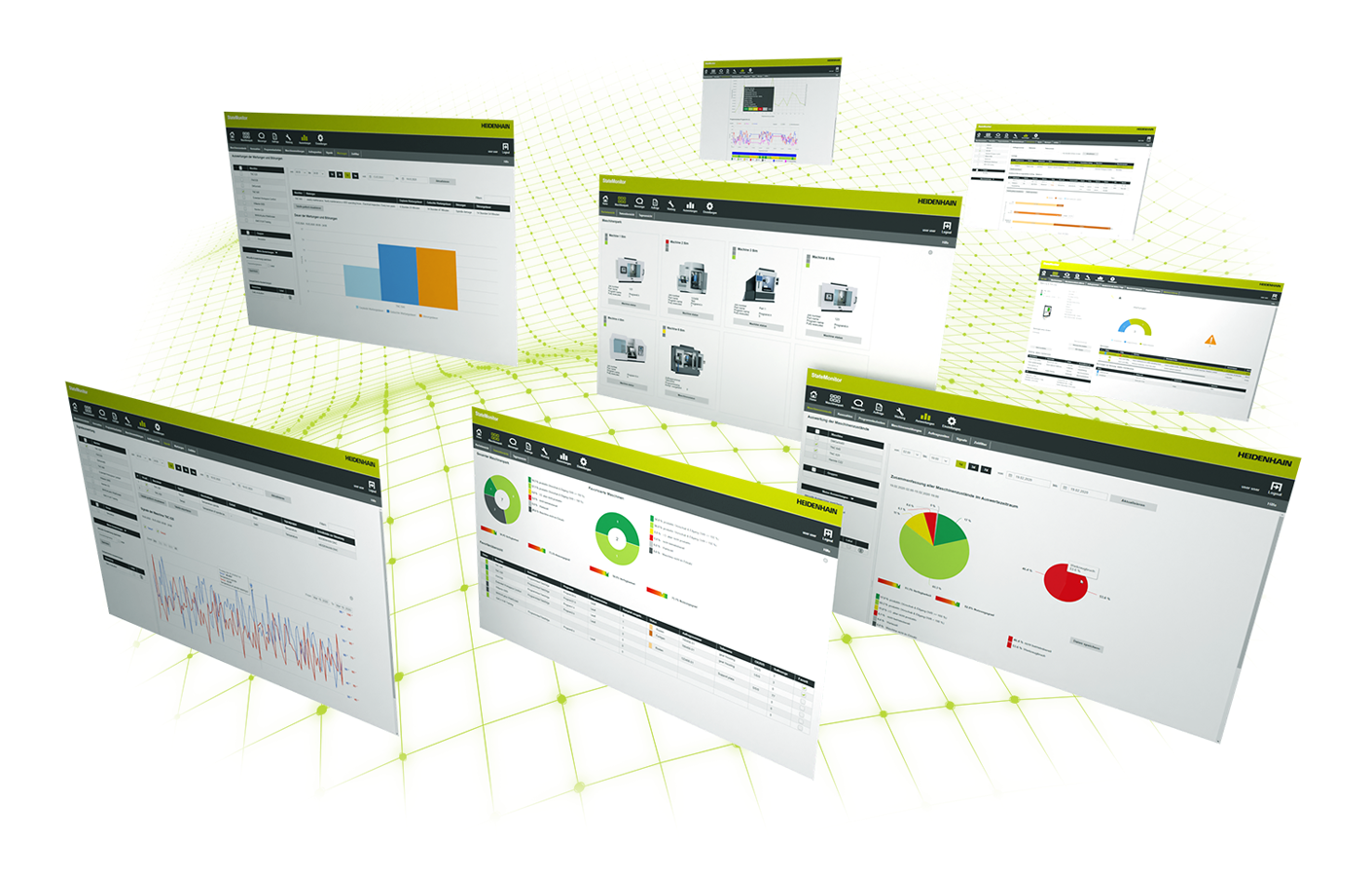

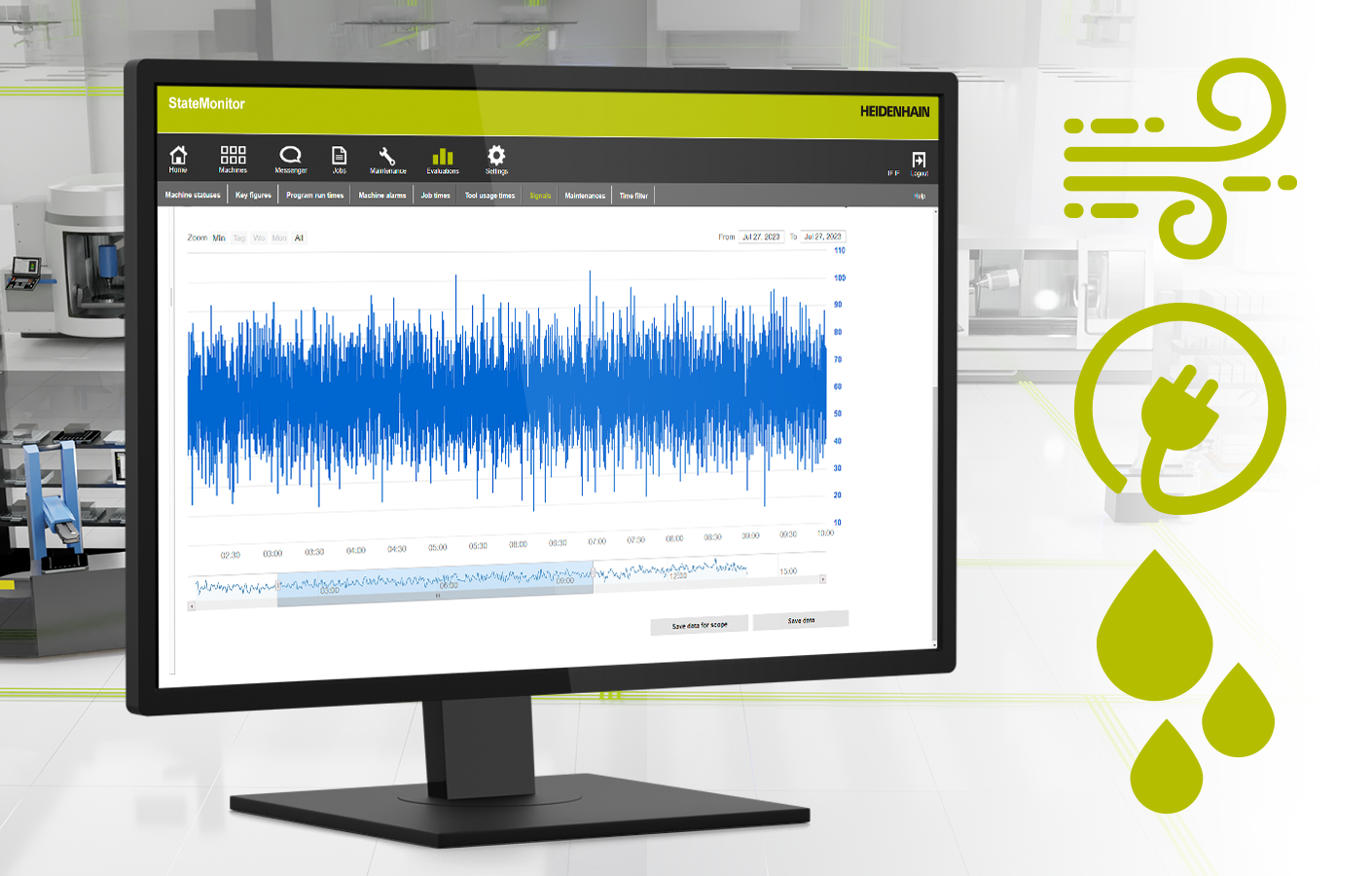

Digital Shop Floor software solutions

Gain 360° of insight into your shop floor. The Digital Shop Floor solutions from HEIDENHAIN model your complete process chain through machine-oriented software, advisory support, online services, and more.

Touch probes and camera systems

How can you reduce setup times, boost machine-tool uptimes, and ensure process reliability for high manufacturing quality? With HEIDENHAIN touch probes and camera systems for tool and part measurement.

Signal converters

HEIDENHAIN signal converters adapt encoder signals to the interface requirements of your application's downstream electronics. They can even process additional sensor signals as needed.

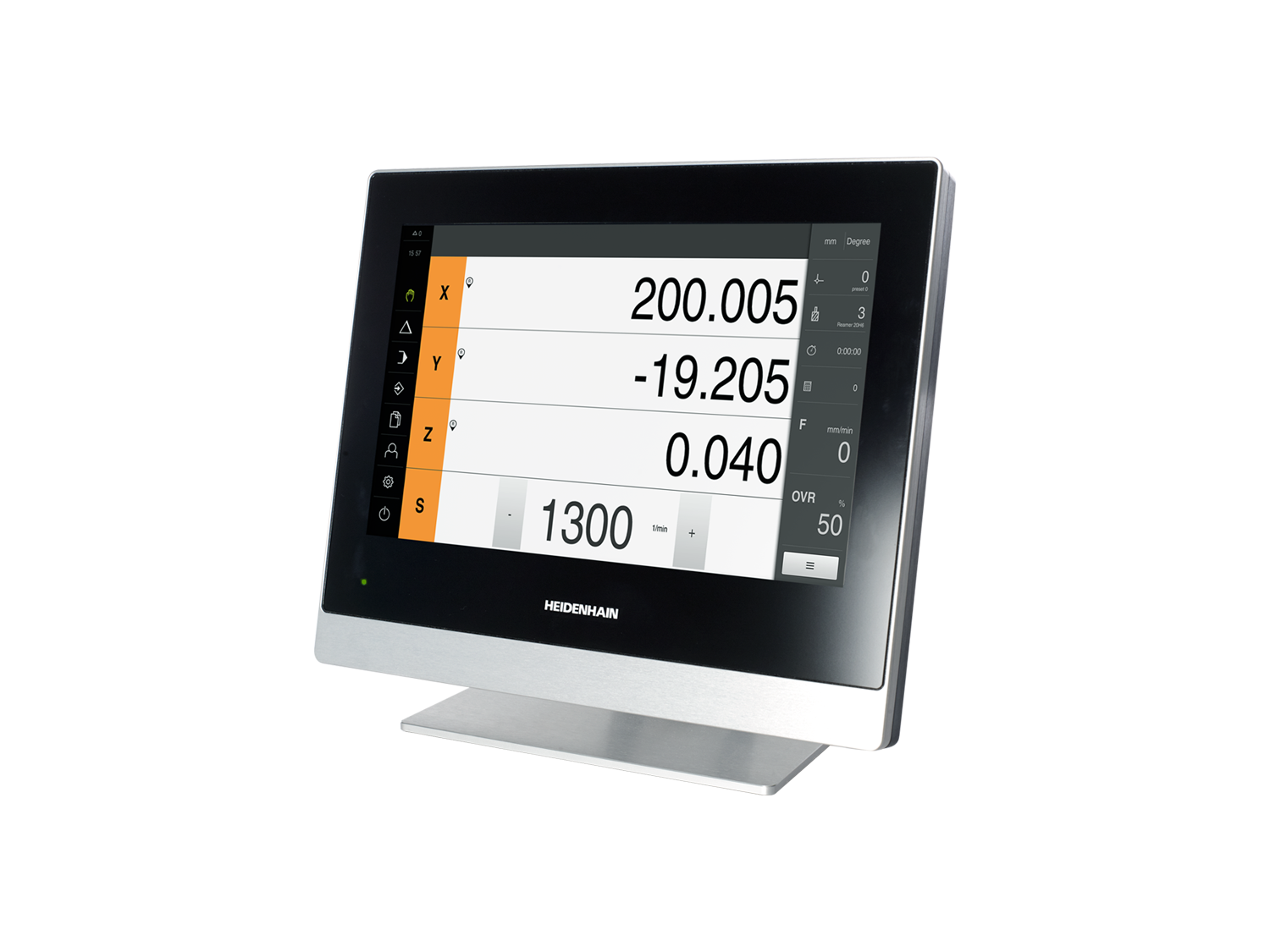

Digital readouts

High-performance digital readouts from HEIDENHAIN save time and simplify the operation of machines, automation systems, and metrology applications. Benefits include their built-in touchscreen, intuitive user interface, and dialogue guidance.

Length gauges

Length gauges from HEIDENHAIN can measure even long measuring ranges quickly, reliably, and accurately. Leverage these benefits in your production measurement technology for multi-gauging fixtures, measuring equipment monitoring, and position measurement.

Inspection and testing devices

HEIDENHAIN encoders deliver all of the information needed for adjustment, initial configuration, and monitoring. Our inspection and testing devices leverage these data for machine acceptance testing, functionality testing, and extensive diagnostics.

Linear encoders

Linear encoders from HEIDENHAIN measure the position of linear axes without added mechanical intervention, allowing your machines to attain exceptional positioning accuracy and machining speed.

Angle encoders

Enjoy high-accuracy rotary axis positioning down to a few arc seconds. HEIDENHAIN has the optimal angle encoder for your application, with sealed, modular, and highly integrated, built-in bearing options.

Rotary encoders

Entrust your application to premium quality, durability, and precision. The robust and easy-to-install rotary encoders from HEIDENHAIN measure speed and position with accuracy and dependability.

CNC controls

CNC controls from HEIDENHAIN are shop-friendly, versatile, and high-performance. These milling and turning controls optimize motion control on your machine tools, turning them into user-friendly workstations on the shop floor.

Digital Shop Floor software solutions

Gain 360° of insight into your shop floor. The Digital Shop Floor solutions from HEIDENHAIN model your complete process chain through machine-oriented software, advisory support, online services, and more.

Touch probes and camera systems

How can you reduce setup times, boost machine-tool uptimes, and ensure process reliability for high manufacturing quality? With HEIDENHAIN touch probes and camera systems for tool and part measurement.

Signal converters

HEIDENHAIN signal converters adapt encoder signals to the interface requirements of your application's downstream electronics. They can even process additional sensor signals as needed.

Digital readouts

High-performance digital readouts from HEIDENHAIN save time and simplify the operation of machines, automation systems, and metrology applications. Benefits include their built-in touchscreen, intuitive user interface, and dialogue guidance.

Length gauges

Length gauges from HEIDENHAIN can measure even long measuring ranges quickly, reliably, and accurately. Leverage these benefits in your production measurement technology for multi-gauging fixtures, measuring equipment monitoring, and position measurement.

Inspection and testing devices

HEIDENHAIN encoders deliver all of the information needed for adjustment, initial configuration, and monitoring. Our inspection and testing devices leverage these data for machine acceptance testing, functionality testing, and extensive diagnostics.

Get personalized advice

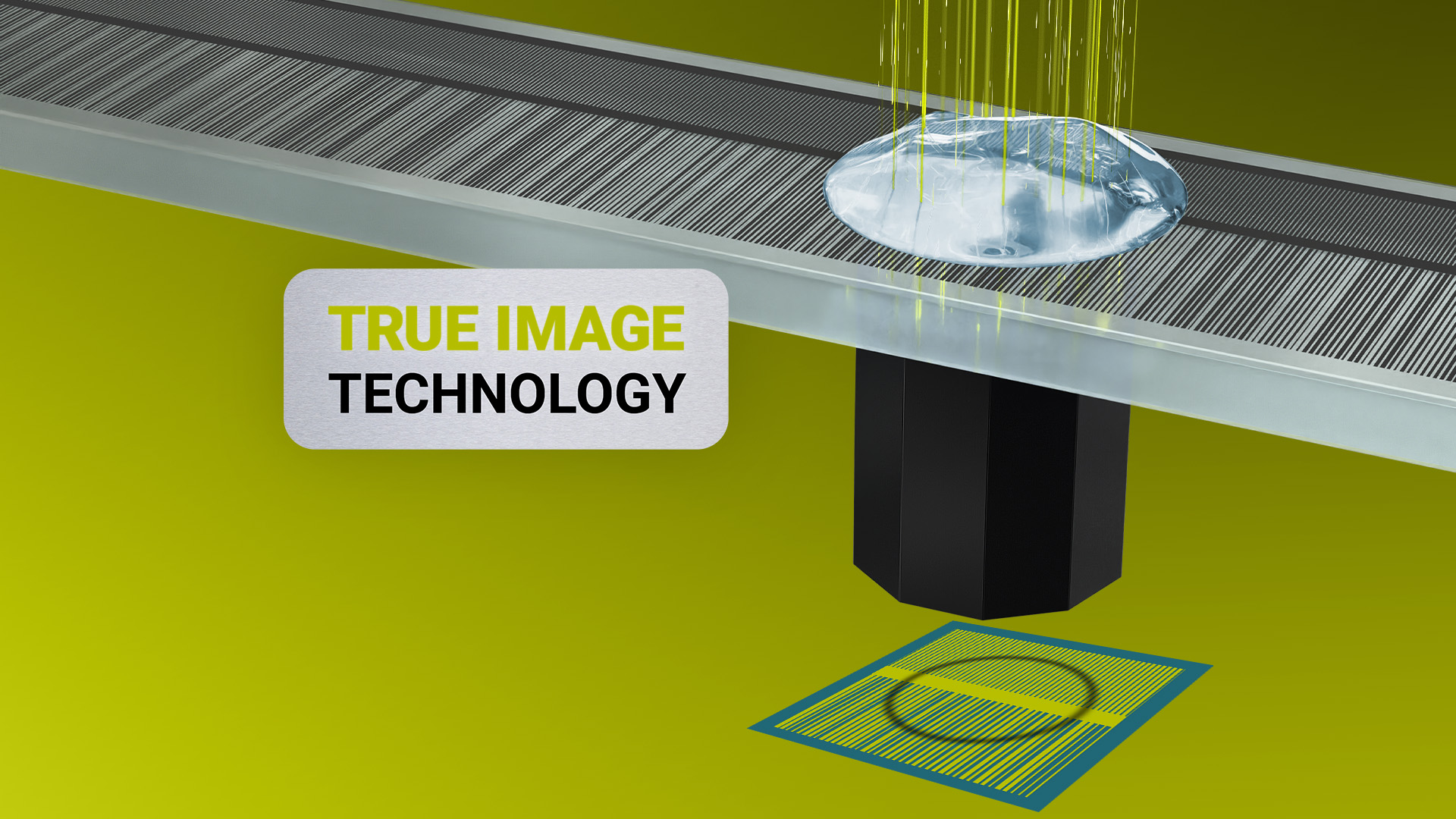

Position feedback without purge air

TRUE IMAGE TECHNOLOGY for sealed linear and angle encoders from HEIDENHAIN

Thanks to TRUE IMAGE TECHNOLOGY, the Series 6 LC linear encoders and Series 1 RCN angle encoders from HEIDENHAIN maintain a clear image of their scales, even in machine tools with condensation and other liquid contamination. A special light-guiding element eliminates optical distortions, allowing these encoders to reliably deliver high-accuracy position feedback, in many cases without purge air. The results are lower system costs and an up to 99% smaller carbon footprint.

View press release

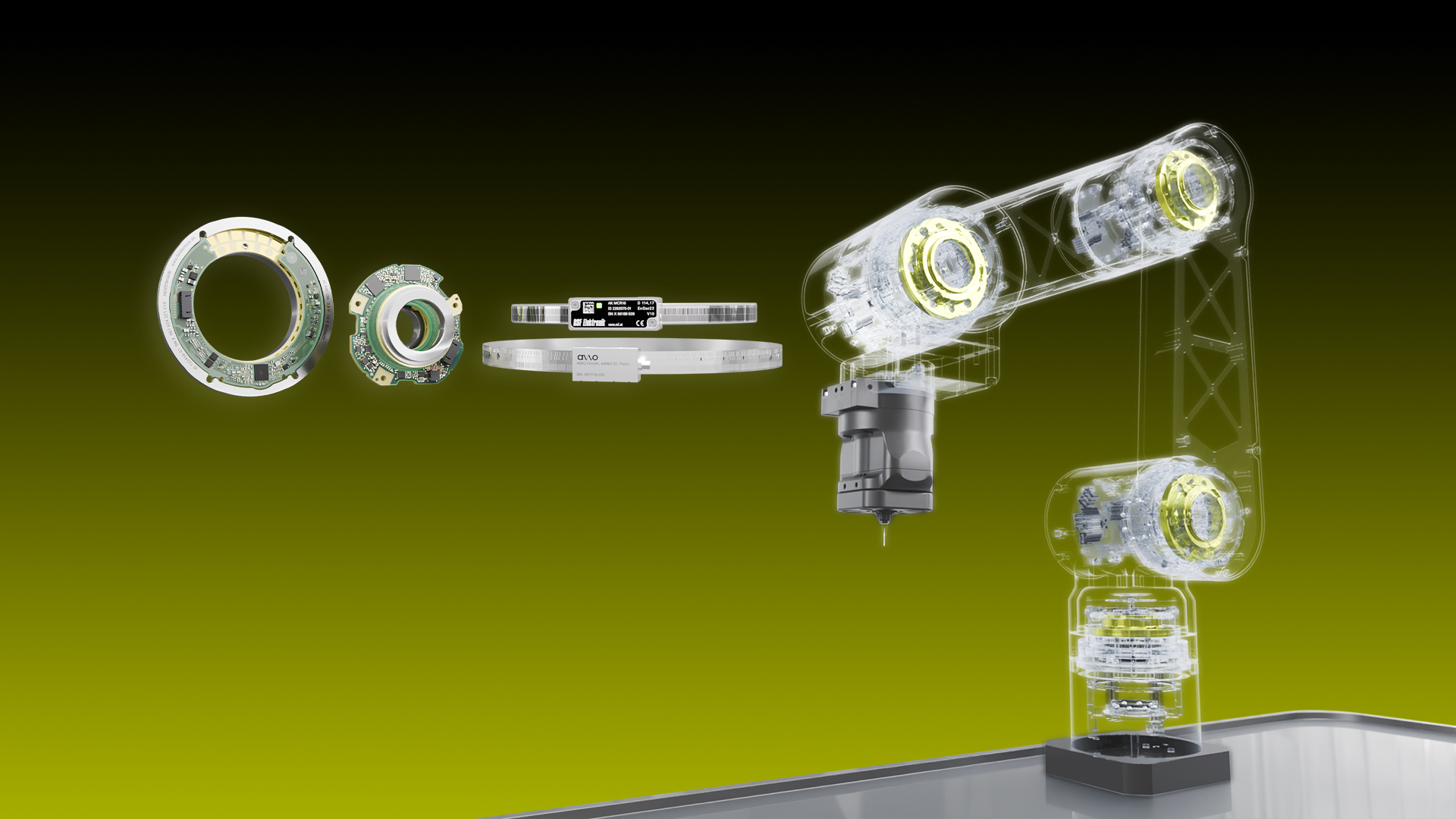

HEIDENHAIN Dplus encoders

New potential in robotics, elevators and chipmaking

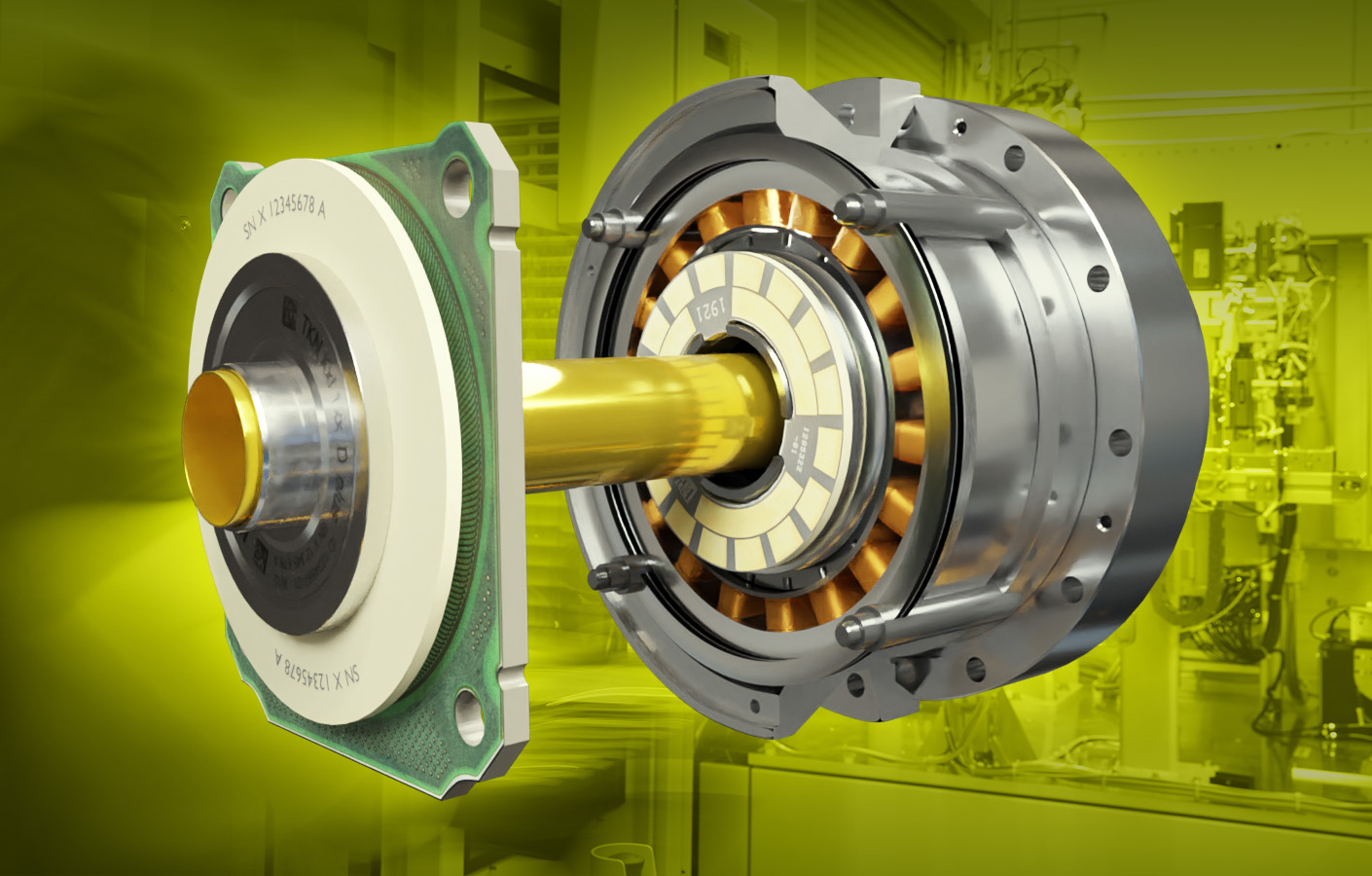

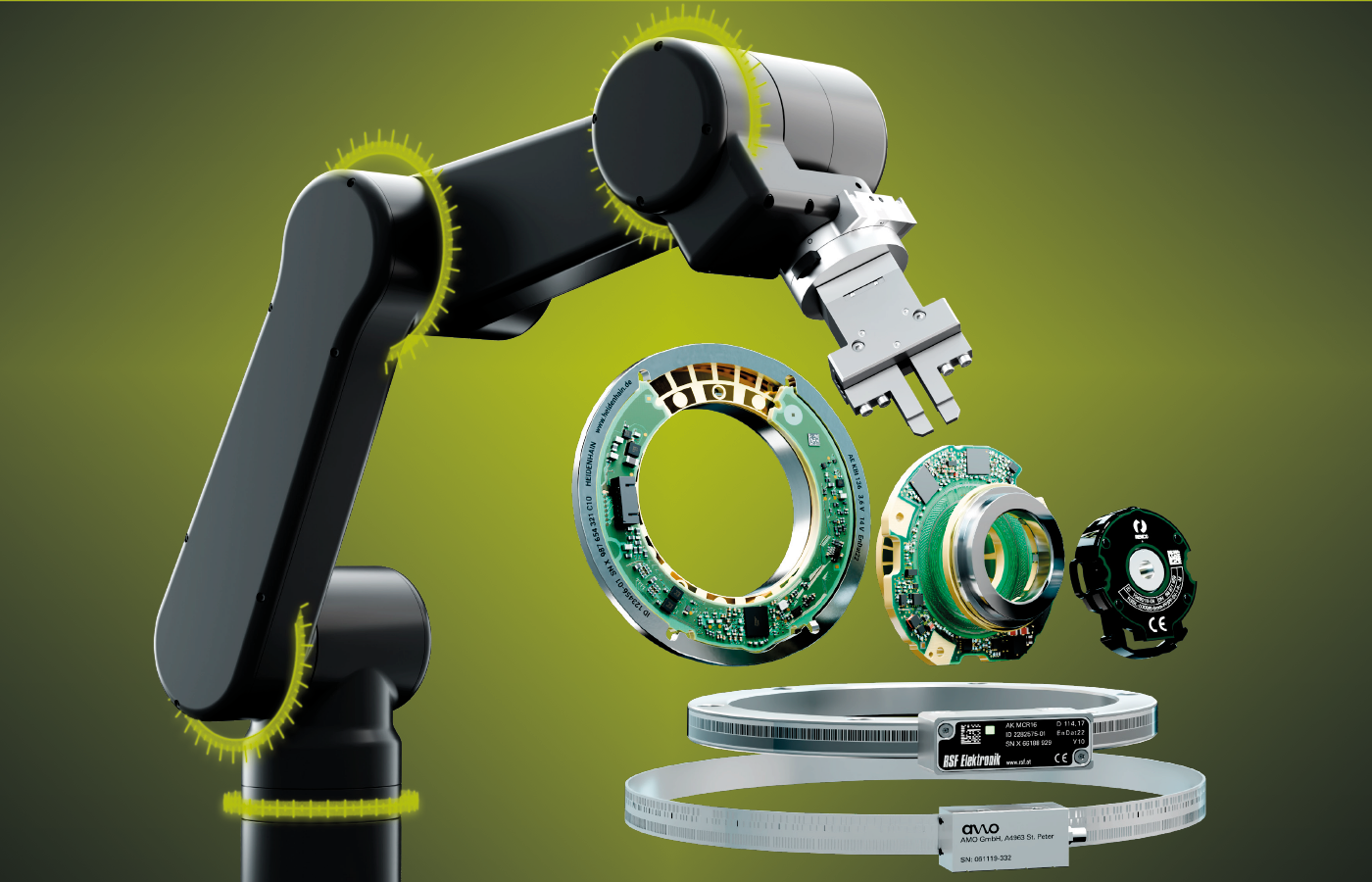

Our Dplus encoders share a remarkable capability: multi-dimensional motion feedback. In robotics, the inductive KCI 120 Dplus provides rotary position feedback both upstream and downstream from a robot joint’s gearing, thus raising TCP accuracy and simplifying cobot design. On elevator motors, the KCI 419 Dplus merges angular position feedback with continuous brake-stroke monitoring for greater operational reliability. And for chipmaking challenges, such as finer structures in hybrid bonding, the LIP 6000 Dplus drives up accuracy by tracking secondary motion orthogonal to its primary linear axis.

Find out more

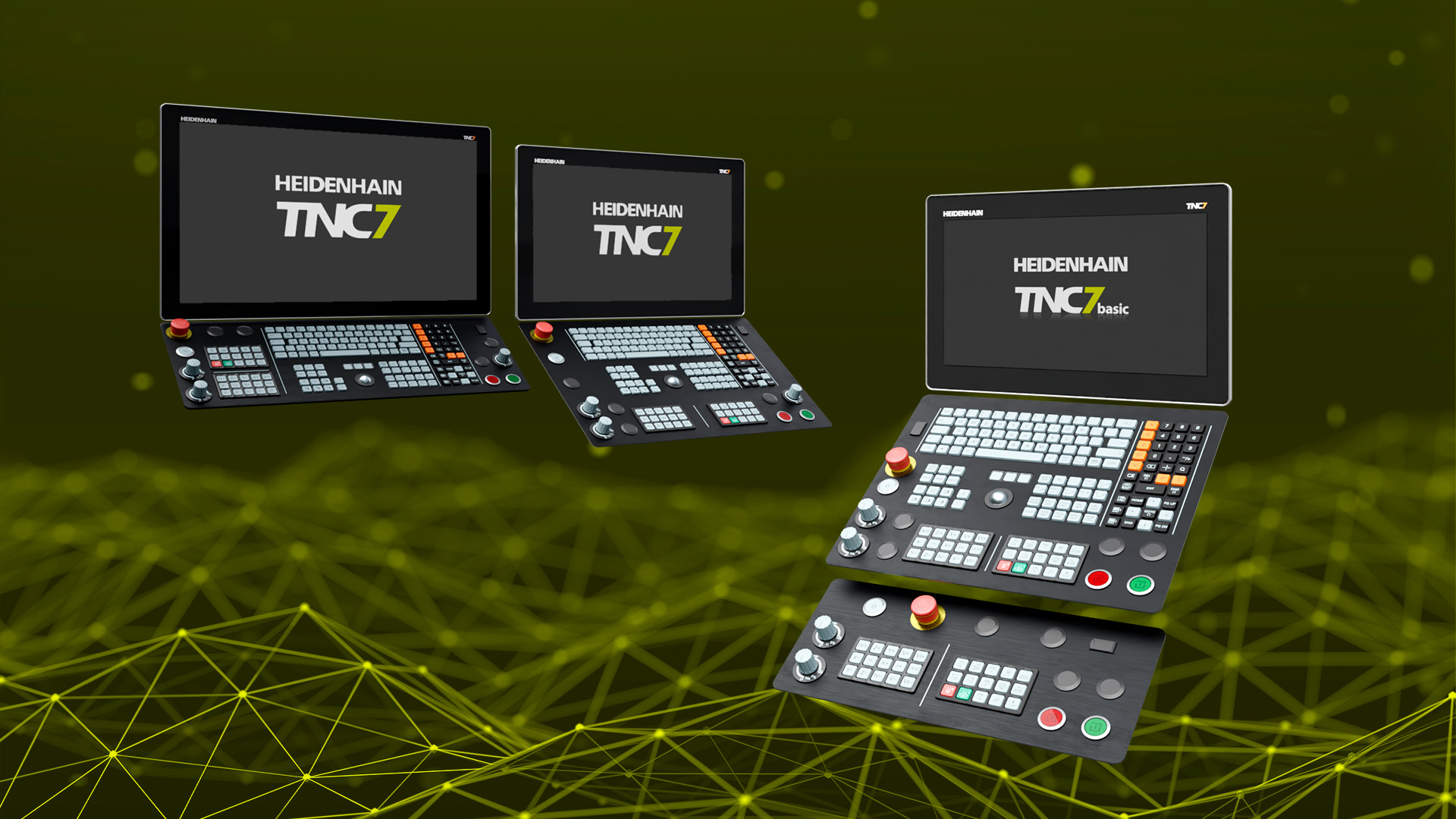

The compact TNC7 basic

Bringing TNC7 benefits to smaller applications such as 3+2-axis machines

Within the new range of HEIDENHAIN TNC7 controls, the 16-inch TNC7 basic was designed to succeed the TNC 620 at the lower end of the size spectrum. But it still has the typical TNC7 benefits that make the new HEIDENHAIN controls so easy, reliable and efficient to operate, including 6D Model Aided Setup (MAS), Dynamic Collision Monitoring (DCM), OCM trochoidal milling and a Full HD monitor.

View press release

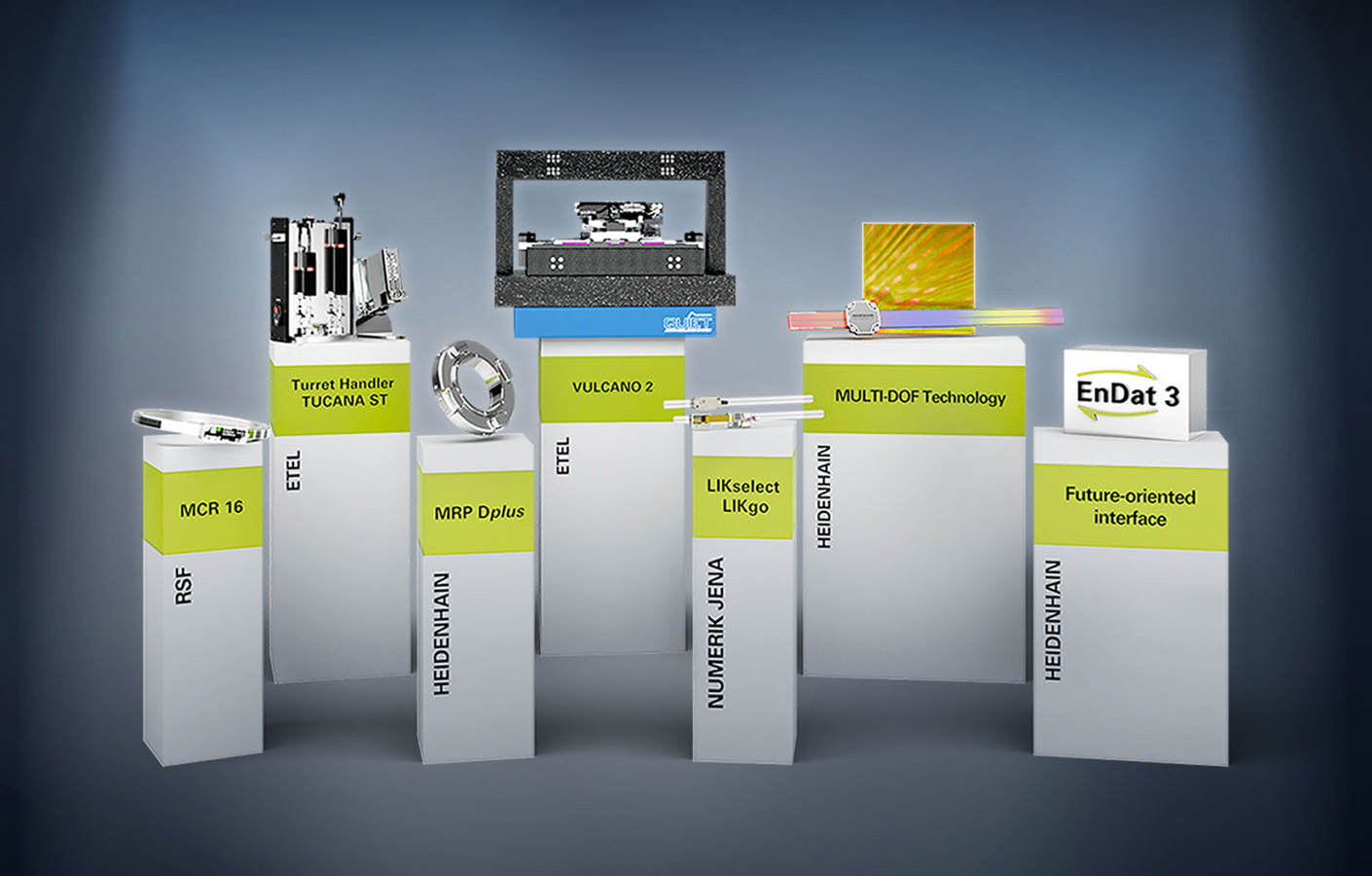

Improve accuracy and throughput

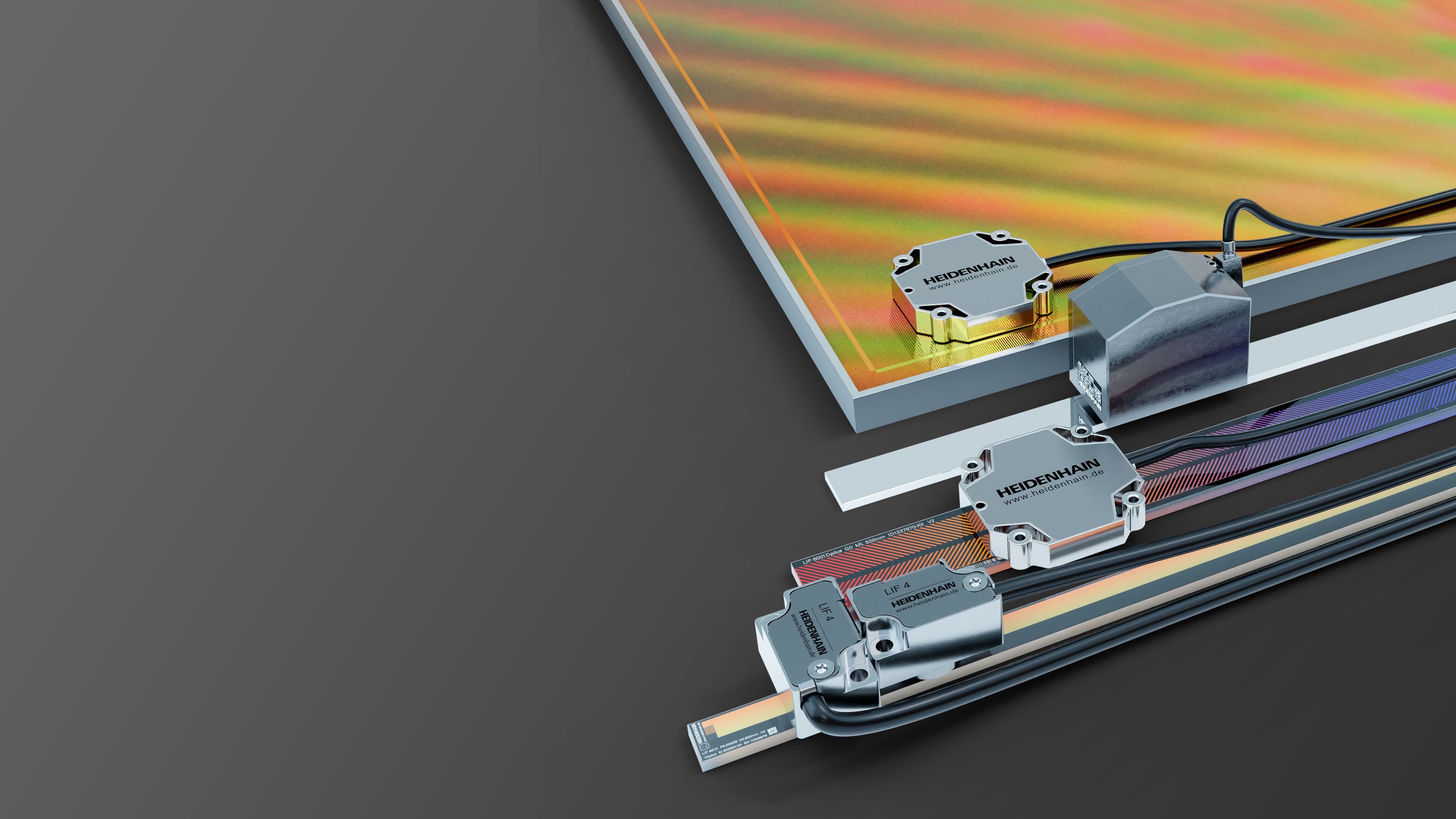

Unlocking new potential in chipmaking with HEIDENHAIN MULTI-DOF TECHNOLOGY

Chiplet technology and new mid-end-of-line processes in semiconductor manufacturing have laid the groundwork for artificial intelligence, humanoid robots and self-driving vehicles. Advances in production miniaturization have downscaled the distance between electrical contacts to 2 microns, thus reaching a key milestone. But even smaller structures are attainable at greater throughput with the HEIDENHAIN encoders and ETEL motion systems being showcased at SEMICON West 2024.

Read the press release

The VT 122 measuring camera

Holistic tool inspection from the convenience of your screen

The HEIDENHAIN VT 122 measuring camera and VTC software are a single intelligent system with the threefold functionality of a tool presetter, tool microscope and visual inspection aid. Take accurate images of the tool’s edge while it is inside the machine envelope. Automatically measure tool length and diameter. Then visually inspect the tool and measure its wear on the screen of your control or PC. The benefits are time savings, higher machining accuracy, reduced scrap and less rework.

View press release
